Let these safety decals help you better protect yourself

22 March,2017

Like:

Safety decals are fixed to the excavators, to alert the operator or maintenance personnel that potential danger might be involved with inappropriate operation or maintenance. There are two kinds of safety decals fixed on SANY’s excavators, textual and graphical. Textual safety decals use brief words to indicate hazardous situation and the correct measures for ensuring safety. Take the following one for an example.


The graphical ones use visual graphics to indicate some hazardous situation and tell the operator how to avoid it. For instance, the graphical one below to the left refers to the danger of falling down, while that to the right means stepping here is forbidden.

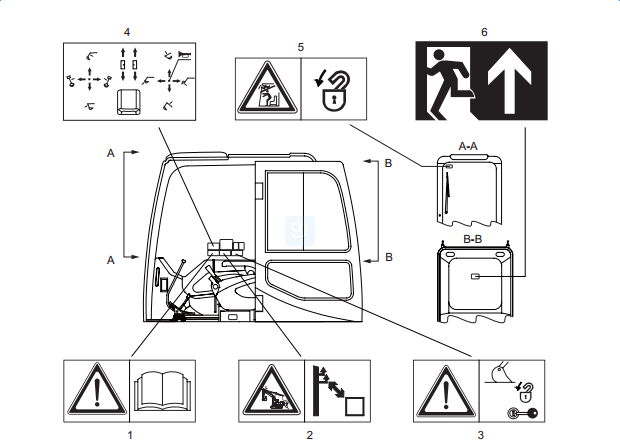

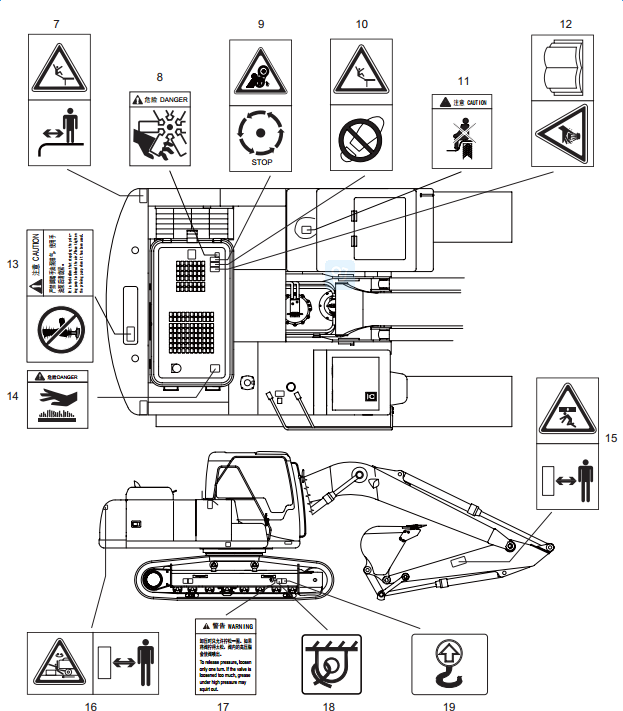

For SANY’s excavators, the safety decals are located in many parts of the machine, since we put safety of operator as the first priority. We don’t let each minor error go and always pursue the perfection in the safety journey. For better learn the safety indications on SANY excavators, you can count on the illustration below.


1) Read the operation manual
2) Overhead power cable
3) Power OFF
4) Operating mode
5) Lock the front winow
6) Emergency exit


7) Falling hazard
8) Rotating fan
9) Moving belt
10) Do not step
11) No seating
12) High pressure fluid
13) No stepping on priming pump
14) Hot surface
15) Overhead crushing hazard
16) Side crushing hazard
17) Track tension adjustment
18) Anchoring point
