Item Details

Specifications
Benefits
Equipment
Engine
Engine Model
Cummins QSL9-FR92967
Displacement
7.79L
Rated Power
205/2200kW/rpm
Operating Weight
Std. Operating Weight
36100kg
Hydraulic System
Hydraulic Motors - Travel
KYB GT60T65B
Hydraulic Motors - Swing
Kawasaki M5×180CHB-10A-6RA/265-RG20D25G2-141
Boom Cylinders - Bore
140mm
Boom Cylinders - Stroke
1480mm
Arm Cylinders - Bore
170mm
Arm Cylinders - Stroke
1725mm
Bucket Cylinders - Bore
150mm
Bucket Cylinders - Stroke
1285mm
Service Capacities
Fuel Tank Capacity
620L
Hydraulic Tank Capacity
380L
Engine Oil
36L
Cooling System
20L
Undercarriage
Track Shoes Number
49
Carrier Roller - Perside
2
Track Roller - Perside
9
Working Range
Max.Digging Force - Bucket
235kN
Max.Digging Force - Arm
180kN
Max.Digging Height
9890mm
Max.Digging Depth
7050mm
Max.Vertical Digging Depth
5180mm
Max. Excavating Distance
10780mm
Min. Swing Radius
4495mm
Height at Min. Swing Radius
8600mm
Transmission
Travel Speed - Highest
5.5km/h
Travel Speed - Lowest
3.5km/h
Swing Speed
9.5rpm
Gradeability
70%/35°
Std. Operating Weight
63kPa
Dimensions
Transportation Length
11350mm
Transportation Width
3190mm
Transportation Height
3545mm
Upper Body Width
3150mm
Cab Height
3320mm
Std.Track Width
800mm
Track Gauge
2590mm
Min.Ground Clearance
550mm
Tail Swing Radius
Track Length
5065mm

The 36100 kg SY335C adopts Cummins QSL9-FR92967 engine, with 205/2200kW/rpm power force, delivering new levels of efficiency and productivity that helps you get the most out of your investment.



HIGH EFFICIENCY AND LOW CONSUMPTION
Engine Customized for SANY
With a dual-pump, dual-circuit constant power control system, the engine can fully develop its power. The perfect combination of this two realizes the high efficiency and low fuel consumption under different working mode, while optimizing the combustion.
Powerful Travel Ability
The latest Nabtesco large-torque travel mechanism is adopted to enhance the driving force and reliability, making the travel motor driving force increased to 274KN.
Four Working Mode Selection
The working mode could be switched according to the operation needs. The heavy duty mode is for the maximum operating efficiency; the standard mode is for reducing the fuel consumption and noise; the light duty mode is for lowering the fuel consumption and high economy and the breaker mode is special for the hammering condition.



COMFORTABLE OPERATION
The spacious and sealed cab is not only creating quiet environment for the operator, but ensures the air pressure inside is higher the outside, preventing the dust invasion. The innovative silicone rubber shock absorber, equipped in the operator station, minimizes the shock brought by the rough road condition or hydraulic impact, considerably increasing the stability of the cab and improving the comfort of the operator.
Multiple air outlets at different levels and locations give the operators more comfort, especially under stuffy environment.



SAFETY
Falling object protection structure
The cab is punch-formed with thick high-strength steel sheet, and the toughened glass-made door and window, together with the equipped seat-belt, creating a quite safe environment for the operators.
Much more extensive view
The improved cab design elements the previous narrowed blind zone, by reducing the colomn size and decreasing the structural strength of the cab.
Easier Monitoring and Maintenance
Additional oil drain valve on swing mechanism makes gear oil replacement much easier.
The accessible oil filter installed far away from the engine ensures easy maintenance. The radiator, fuel tank, hydraulic oil tank and oil pan are equipped with screw plugs at the bottom, which is convenient for discharging the exterior substance and waste liquid.



RELATED ARTICLES:

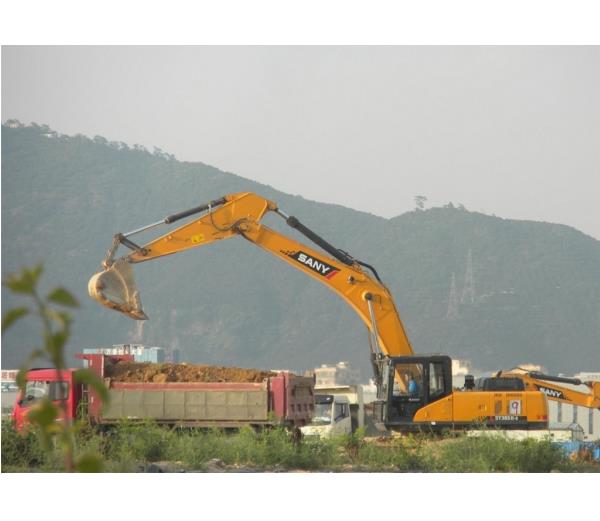

SY365C used in sea reclamation project

SANY large-sized excavator 36.5 ton SY365 was selected by Chartworth Enterprise Singapore PTE LTD to be used ina sea reclamation project.

OPTIONAL EQUIPMENT

►Hammer pipe lines

Two-way lines (Attachement has three functions)

Boom&Arm safety valve

Hydraulic quick coupler lines+button

FOPS&ROPS cabin

Full protection cabin

Fuel fill pump

Travel acoustic alarm

SAE/BHL Patten change

Rear camera

Multi-function short joystick

Power boost

12V charge

Long track

Battery main switch

Engine emergency cut off

Air suspention seat

Track: 60mm/700mm
