Item Details

Specifications
Benefits
Equipment
Engine
Engine Model
Isuzu AL-4HK1X
Displacement
5.2L
Rated Power
132/2200kW/rpm
Operating Weight
Std. Operating Weight
25300kg
Hydraulic System
Main pump - Maximum flow
2×252L/min
Hydraulic Motors - Travel
KYB B0240-93111
Hydraulic Motors - Swing
Kawasaki M5×180CHB-12A-6XA/260-169-RG14D20A7
Relief Valve - Implement Circuit
34.3mpa
Relief Valve - Travel Circuit
34.3mpa
Relief Valve - Heavy Lift Circuit
25.5mpa
Relief Valve - Pilot Circuit
3.9mpa
Service Capacities
Fuel Tank Capacity
340L
Hydraulic Tank Capacity
239L
Engine Oil
29.6L
Cooling System
25.8L
Final Drive (each)
5.0L
Swing Drive (each)
4L
Undercarriage
Track Shoes Number
49
Carrier Roller - Perside
2
Track Roller - Perside
9
Working Range
Max.Digging Force - Bucket
175kN
Max.Digging Force - Arm
122kN
Max.Digging Height
9645mm
Max.Digging Depth
6800mm
Max.Vertical Digging Depth
5850mm
Max. Excavating Distance
10165mm
Min. Swing Radius
3800mm
Height at Min. Swing Radius
7940mm
Transmission
Travel Speed - Highest
5.5kkw/h
Travel Speed - Lowest
3.5kw/h
Swing Speed
11rpm
Gradeability
70%/35°
Std. Operating Weight
30.4kPa
Dimensions
Transportation Length
9920mm
Transportation Width
3290mm
Transportation Height
3175mm
Upper Body Width
2710mm
Cab Height
2930mm
Std.Track Width
700mm
Track Gauge
2590mm
Min.Ground Clearance
470mm
Tail Swing Radius
Track Length
4635mm6

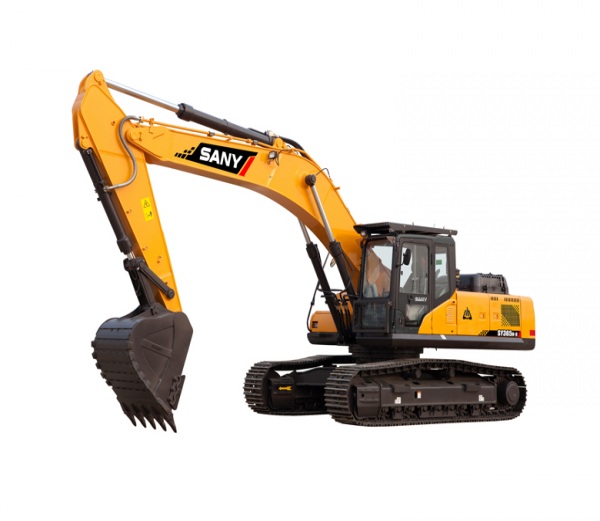

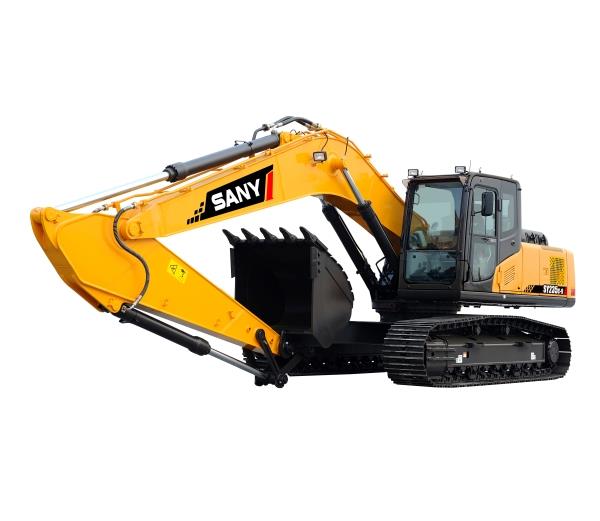

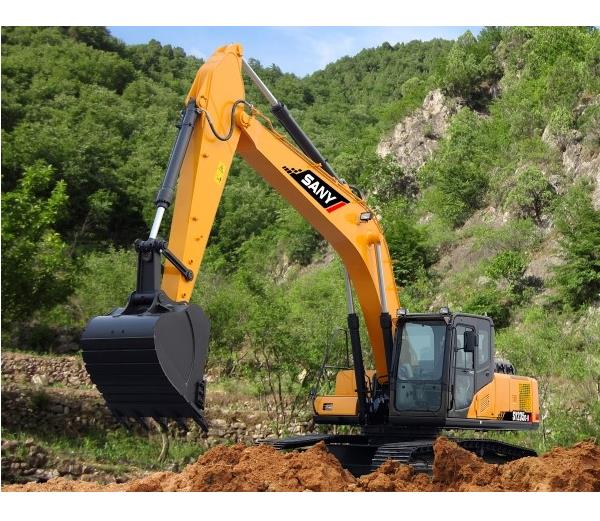

The 25300kg SY235C adopts Isuzu AL-4HK1X engine, with 132/2200kW/rpm power force, delivering new levels of efficiency and productivity that help you get the job done.



HIGH EFFICIENCY AND LOW CONSUMPTION
Engine Customized for SANY
Faster working speed, high-power engine, larger workload, and larger digging force
With a dual-pump, dual-circuit constant power control system, the Isuzu CC-6BG1TRP Engine is designed for high efficiency. The working mode is automatically adjusted with the engine speed regulation, realizing higher operating efficiency and lower fuel consumption.
Environmental-friendly engine
The Advanced Computer Dynamic Control technology provides real-time match between engine power an main pump power, realizing the perfect combination of power and economy.
The Auto Deceleration System helps reduce the fuel consumption by 5-10 percent. Only within 3 seconds, the engine speed drops automatically to idle level and maintains a idling state, reducing the void flow in the hydraulic system, wear of diesel engine, energy consumption and noise.
Equipped with air pre-cleaner and dual air filtering elements, the three-stage air cleaner ensures supply of sufficient clean air that can reduce the wear of cylinders.



HIGH RELIABILITY
Excellent cooling effect
The water-cooling turbo diesel engine, with six-cylinder, four-stroke direct-injection turbocharger and air-air intercooler, make up a complete engine cooling system. The large-capacity of 6.49L displacement, also helps reduces the engine heat load and givers a longer service life.
Strong structure
The reinforced X-frame modeled with digital tools, through finite element analysis on loading capacity realizes the tough structure.



COMFORT AND SAFETY
The spacious and sealed cab is not only creating quiet environment for the operator, but ensures the air pressure inside is higher the outside, preventing the dust invasion. The innovative silicone rubber shock absorber, equipped in the operator station, minimizes the shock brought by the rough road condition or hydraulic impact, considerably increasing the stability of the cab and improving the comfort of the operator.
The top plate of cab is punch-formed with thick high-strength steel sheet integrated with reinforced ribs, together with the hydraulic lockout control, prevents accidents and creates a safer operating environment.
The engine is housed in excellent heat insulation to prevent accidental burns. The radiator fan is enclosed with a protective net cover that can prevent objects from falling into the fan and damaging the blade.



EASIER MONITORING AND MAINTENANCE
The large LCD monitor can ensure safe, precise and stable operation, and even in dim condition, the LCD can also be easily read from various angles.
The large LCD monitor is also acting as an equipment managing and monitoring system, especially with its monitoring function, malfunction reading, and troubleshooting functions.

OPTIONAL EQUIPMENT

►Hammer pipe lines

Two-way lines (Attachment has three functions)

Boom&Arm safety valve

Hydraulic quick coupler lines+button

FOPS&ROPS cabin

Fuel fill pump

Travel acoustic alarm

SAE/BHL Patten change

Multi-function short joystick

Power boost

12V charge

Battery Main switch

Engine Emergency cut off

Air suspention seat

Track: 600mm/700mm
