Item Details

Specifications
Benefits
Equipment
Engine
Engine Model
QSB6.7-190
Displacement
6.7L
Rated Power
145/2000kW/rpm
Emission Standard
EU Stage ⅢA
Max.torque
931/1400N.m/rpm
Operating Weight
Std. Operating Weight
25215kg
Std.Bucket Capacity
1.1m³
Std.Boom Length
5.9m
Std.Arm Length
2.95m
Hydraulic System
Main pump - Maximum flow
2×252L/min
Hydraulic Motors - Travel
Hydraulic
Hydraulic Motors - Swing
Hydraulic
Relief Valve - Implement Circuit
34.3mpa
Relief Valve - Travel Circuit
34.3mpa
Relief Valve - Heavy Lift Circuit
25.5mpa
Relief Valve - Pilot Circuit
3.9mpa
Boom Cylinders - Bore
130mm
Boom Cylinders - Stroke
90mm
Arm Cylinders - Bore
130mm
Arm Cylinders - Stroke
90mm
Service Capacities
Fuel Tank Capacity
340L
Hydraulic Tank Capacity
239L
Engine Oil
26.4L
Cooling System
27.6L
Final Drive (each)
5.0L
Undercarriage
Track Shoes Number
49
Carrier Roller - Perside
2
Track Roller - Perside
9
Working Range
Max.Digging Force - Bucket
175kN
Max.Digging Force - Arm
122kN
Max.Digging Height
9520mm
Max.Digging Depth
6757mm
Max.Vertical Digging Depth
5860mm
Max. Excavating Distance
10166mm
Min. Swing Radius
3800mm
Height at Min. Swing Radius
7940mm
Transmission
Travel Speed - Highest
5.5km/h
Travel Speed - Lowest
3.2kw/h
Swing Speed
13rpm
Gradeability
70%/35°
Std. Operating Weight
35.7kPa
Dimensions
Transportation Length
10120mm
Transportation Width
3390mm
Transportation Height
3394mm
Upper Body Width
2710mm
Cab Height
3050mm
Std.Track Width
800mm
Track Gauge
2590mm
Min.Ground Clearance
440mm
Tail Swing Radius
Track Length
4635mm
  • The Tier-III engine is equipped with  new controller to realize precise fuel injection for efficiency. Fuel consumption is improved by 10% over the previous generation.
  • The original DOMCS dynamic optimal intelligent matching control system maintains a perfect combination of engine output and main pump output. The result is fast, powerful implement operation.

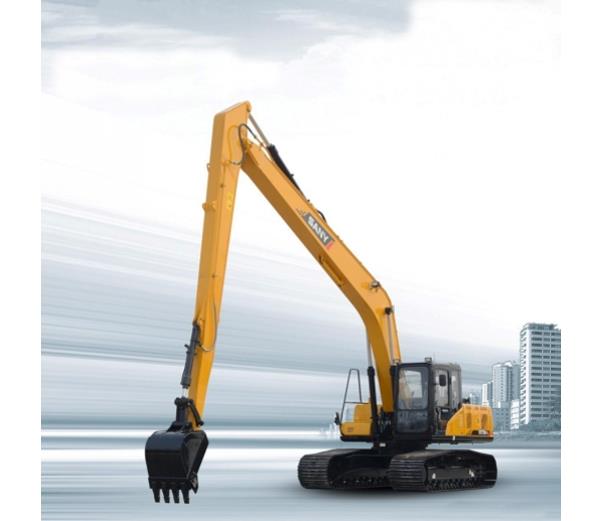

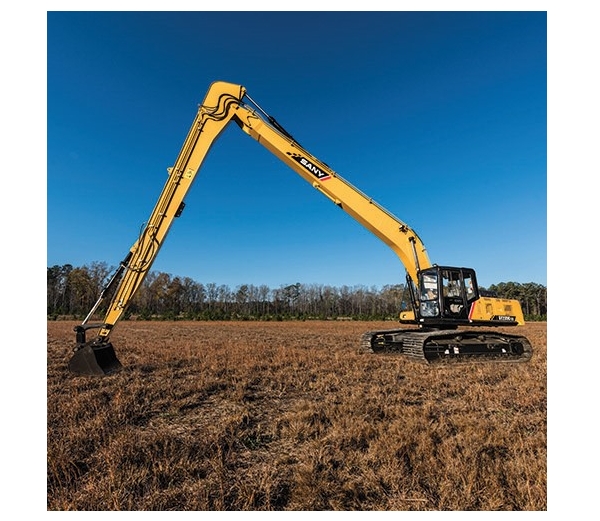

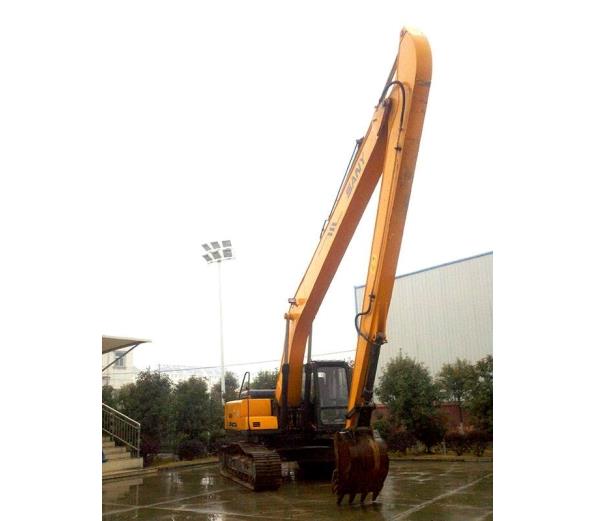

  • Well suited to ultra-long reach work
  • The newly designed vibration reduction system, multiple noise reduction systems substantially improve operator comfort.

RELATED ARTICLES

SANY long-reach excavator series meet your needs in extended-distance operation

For better providing our customers deep digging or excavating at extended distances, SANY develops long-reach excavators for application, which can be used for working in sand and gravel pits, shaping long slopes, and cleaning settling pounds. The models feature large-buckets and heavy-duty high/wide undercarriage, to offer better stability over the side.
