Engine
Engine Model
Isuzu GH-6HK1
Displacement
7.79L
Rated Power
212/2000kW/rpm
Operating Weight
Std. Operating Weight
32800kg
Hydraulic System
Main pump - Maximum flow
2×360L/min
Hydraulic Motors - Travel
KYB GT60T65B
Hydraulic Motors - Swing
Kawasaki M5×180CHB-10A-3NA/265-RG20D25G2-140
Relief Valve - Implement Circuit
34.3mpa
Relief Valve - Travel Circuit
34.3mpa
Relief Valve - Heavy Lift Circuit
26mpa
Relief Valve - Pilot Circuit
3.9mpa
Service Capacities
Fuel Tank Capacity
540L
Hydraulic Tank Capacity
380L
Engine Oil
35L
Cooling System
31.9L
Final Drive (each)
5.0L
Swing Drive (each)
10.5L
Undercarriage
Track Shoes Number
47
Carrier Roller - Perside
2
Track Roller - Perside
8
Working Range
Max.Digging Force - Bucket
220kN
Max.Digging Force - Arm
170kN
Max.Digging Height
10100mm
Max.Digging Depth
7410mm
Max.Vertical Digging Depth
6170mm
Max. Excavating Distance
11050mm
Min. Swing Radius
4450mm
Height at Min. Swing Radius
8500mm
Transmission
Travel Speed - Highest
5.2km/h
Travel Speed - Lowest
3.4km/h
Swing Speed
9.5rpm
Gradeability
70%/35°
Std. Operating Weight
59.6kPa
Dimensions
Transportation Length
11100mm
Transportation Width
3190mm
Transportation Height
3600mm
Upper Body Width
3145mm
Cab Height
3085mm
Std.Track Width
600mm
Track Gauge
2590mm
Min.Ground Clearance
550mm
Tail Swing Radius
Track Length
4870mm

HIGH EFFICIENCY AND LOW CONSUMPTION

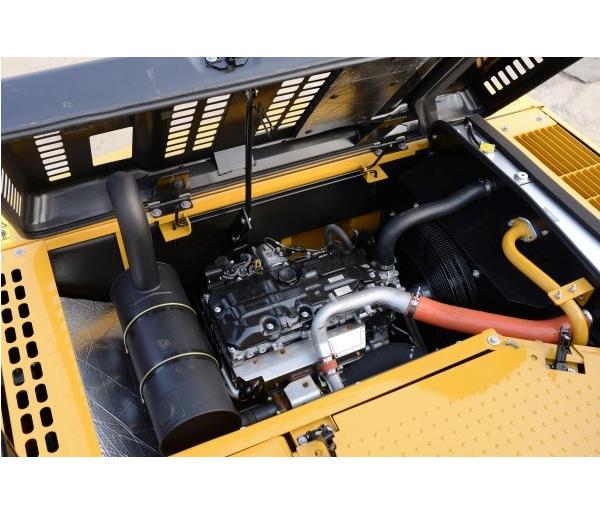

The Isuzu GH-6HK1 Engine with Tier 3 emission standard adopts the brand new controller to realize real-time precise fuel injection, making the fuel burn more sufficiently. Under same working environment, the fuel consumption reduces by over 10 percent.
The self-developed DOMCS dynamic optimized intelligent control system realizes the perfect match of the engine and the main pump, making the movement more fast and also prolonging the service life.



HIGH RELIABILITY
The customized key components by global well-known brands, passing endurance test, adapt to various rough working environment.



USERS' FRIENDLY DESIGN

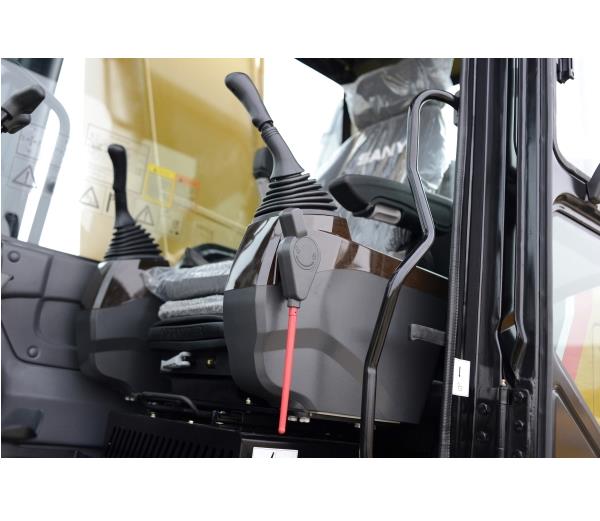

The brand-new damping system, cab with extra-large view, strengthened noise reduction design, greatly improve the operation experience.

OPTIONAL EQUIPMENT

►Saudi Hammer pipe lines

►Track: 700mm/800mm
