Item Details

Specifications
Benefits
Equipment
Engine
Engine Model
Isuzu 4JJ1X
Displacement
4.329L
Rated Power
77/2000kW/rpm
Operating Weight
Std. Operating Weight
14900kg
Hydraulic System
Hydraulic Motors - Travel
Nabo GM21VL
Hydraulic Motors - Swing
Kawasaki M2X63CHB-13A-19/255-2K
Boom Cylinders - Bore
105mm
Boom Cylinders - Stroke
990mm
Arm Cylinders - Bore
115mm
Arm Cylinders - Stroke
1175mm
Bucket Cylinders - Bore
100mm
Bucket Cylinders - Stroke
885mm
Service Capacities
Fuel Tank Capacity
240L
Hydraulic Tank Capacity
150L
Engine Oil
13.2L
Cooling System
10L
Final Drive (each)
2.5L
Swing Drive (each)
3L
Undercarriage
Track Shoes Number
44
Carrier Roller - Perside
1
Track Roller - Perside
7
Working Range
Max.Digging Force - Bucket
92.7kN
Max.Digging Force - Arm
66.13kN
Max.Digging Height
8633mm
Max.Digging Depth
5498mm
Max.Vertical Digging Depth
3495mm
Max. Excavating Distance
8318mm
Min. Swing Radius
2419mm
Height at Min. Swing Radius
6497mm
Transmission
Travel Speed - Highest
5.5km/h
Travel Speed - Lowest
3.3km/h
Swing Speed
12rpm
Gradeability
70%/35°
Std. Operating Weight
41.7kPa
Dimensions
Transportation Length
7766mm
Transportation Width
2550mm
Transportation Height
2880mm
Upper Body Width
2490mm
Cab Height
2880mm
Std.Track Width
500mm
Track Gauge
1990mm
Min.Ground Clearance
425mm
Tail Swing Radius
2930mm
Roller Gauge
2930mm
Track Length
3665mm

HIGH EFFICIENCY AND LOW CONSUMPTION

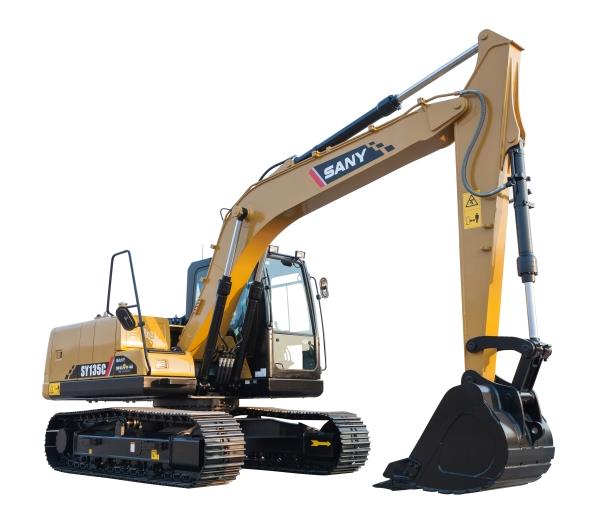

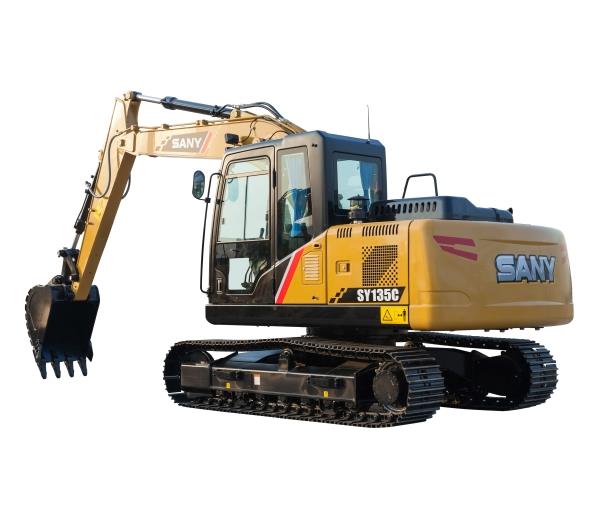

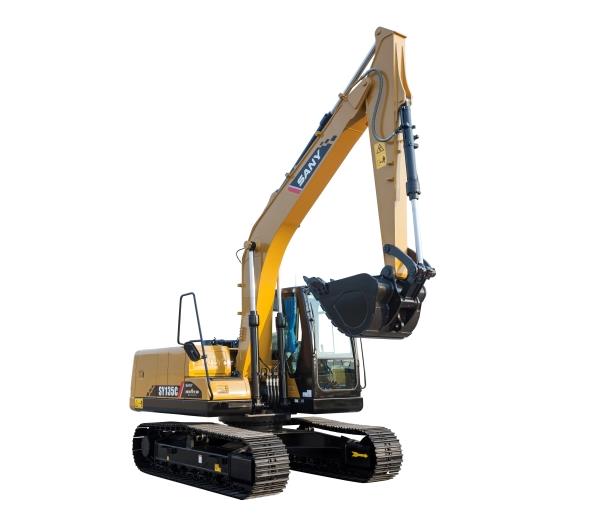

The 13,500 kg SY135C is equipped with Isuzu 4JJ1X engine, with output power of 77/2000kW/rpm, greatly increasing the hydraulic power and fuel efficiency. The customized engine for SY135C is configured with four cylinder, four stroke direct-injection turbocharger, providing strong operating power for the machine.
Faster working speed with larger digging force
The 12 rpm swing speed largely improves the working efficiency, with the digging force of bucket reaching 92.7 kN, and digging force of arm reaching 66 kN.
Electric control module
The electric control module has the capability of making quick response to the operating changes, so as to achieve the optimum engine performance. It’s fully integrated with sensors of fuel, engine oil, air intake, coolant and exhaust system to conduct real-time monitoring and auto-adjustment on the system conditions.
Electric-Hydraulic Control System
Equipped with a dual-pump, dual-circuit constant power control system, the engine fully develops its power to provide a strong operating force, helping get your work done efficiently and effectively.
The ESS Control (ESS Control) and Hydraulic Control (HSS Control), equip the engine with real-time power match, improving the operational productivity and reducing the fuel consumption.



RELIABILITY AND DURABILITY
Quality parts and components
SY135C deploys the customized engine, with 73 kW horse power and 4.329 displacement, largely reducing the heat load and prolonging the service life.
Reinforced X-frame modeled with digital tools make element analysis on loading capacity, realizing high-strength structure.
The high-strength swing platform with reinforced plates, considerably improves the bending resistance performance.



CONFORTABLE OPERATING ENVIRONMENT
The adjustable seat with suspension creates a confortable operating environment, and the rigidity of the seats can also be changed on the operators’ weight.



EASY MAINTENANCE
The SY135C is configured with OEM parts and components, largely extending the service life of the machine. The remote installation of replacement parts eases the maintaining procedures, increasing the using rate, and lowering the service cost.

OPTIONAL EQUIPMENT

►Hammer pipe lines

Two-way lines (Attachement has two functions)

Boom &Arm safety valve

Hydraulic quick coupler lines + button

FOPS&ROPS cabin

Half protection cabin

Full protection cabin

Fuel fill pump

Working flash lamp

Travel acoustic alarm

SAE/BHL patten change

Multi-function short joystick

Power boost

12V charge

Steel rubber track block

Battery main switch

Thick undercover

Engine emergency cut off

Air suspention seat

Travel Motor: Nabo

Track: 500mm
