Item Details

Specifications
Benefits
Equipment
Engine
Engine Model
Isuzu 4JG1
Displacement
3.059L
Rated Power
40.9/2100kW/rpm
Operating Weight
Std. Operating Weight
7355kg
Hydraulic System
Main pump - Maximum flow
149L/min
Hydraulic Motors - Travel
2*axial piston motor with parking brake
Hydraulic Motors - Swing
1 axial piston motor with swing holding brake
Relief Valve - Implement Circuit
27.5mpa 3988psi
Relief Valve - Travel Circuit
27.5mpa 3988psi
Relief Valve - Heavy Lift Circuit
21.5mpa 3988psi
Relief Valve - Pilot Circuit
3.5mpa 2507psi
Service Capacities
Undercarriage
Track Width
450mm
Track Shoes Number
39
Carrier Roller - Perside
1
Track Roller - Perside
5
Working Range
Max.Digging Force - Bucket
56KN
Max.Digging Force - Arm
38KN
Max.Digging Height
7060mm
Max.Digging Depth
4020mm
Max.Vertical Digging Depth
3290mm
Max. Excavating Distance
6240mm
Min. Swing Radius
1720mm
Height at Min. Swing Radius
5550mm
Transmission
Travel Speed - Highest
4.4km/h
Travel Speed - Lowest
2.4km/h
Swing Speed
11.5rpm
Gradeability
70%/35°
Std. Operating Weight
33kpa
Dimensions
Transportation Length
6120mm
Transportation Width
2220mm
Transportation Height
2720mm
Upper Body Width
2040mm
Cab Height
405mm
Std.Track Width
450mm
Track Gauge
1750mm
Min.Ground Clearance
380mm
Tail Swing Radius
2195mm
Roller Gauge
2195mm
Track Length
2820mm

HIGH EFFICIENCY AND PRECISE CONTROL
Powerful Engine

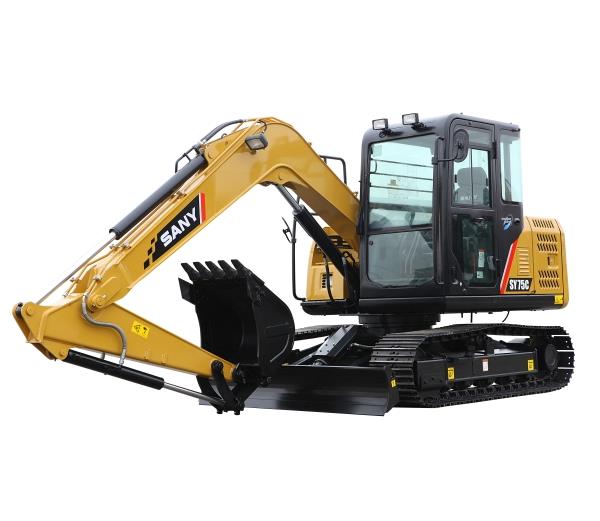

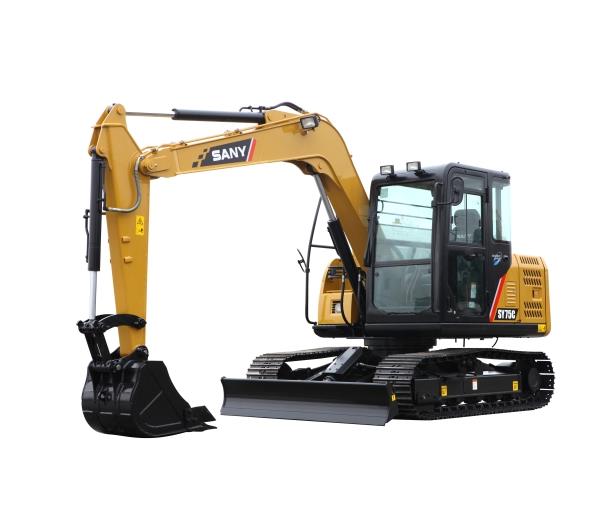

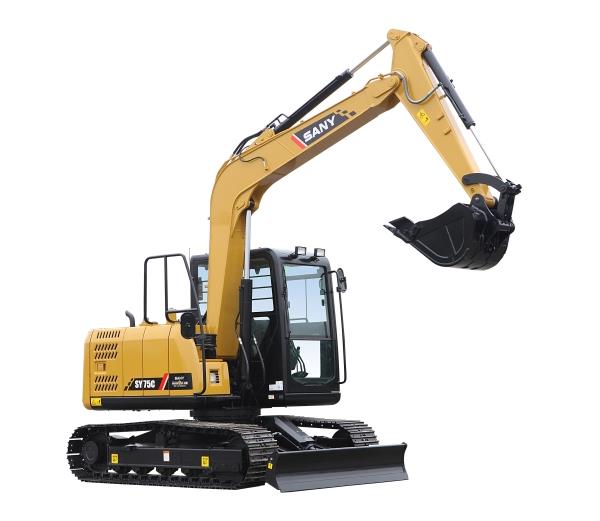

The Isuzu 40/2100 kW/rpm engine of SY75C, equipped with four cylinder, four stroke direct-injection, provides the strong power for the machine.
Faster working speed
Configured with a quick return line to the arm oil cylinder circuit, the operation efficiency is greatly improved. The advanced main valve provides excellent coordinating and leveling performance in combines operations on one hand, and increases the moving speed of arm and bucket on the other.
Load-sensitivity flow distribution system
Consisting of variable single pumps that provide a constant overall power, the load-sensitivity flow distribution system is of high stability and excellent micro-operation performance, offering a perfect meticulous process.
Improved dozer blade
Equipped with an innovative dozer blade, that has an increased magnitude of moving up and down, the machine is suitable for complex operating conditions, such as road construction, burying pipelines or cables. With a special shape and wider plate, the soil could be prevented from failing behind, improving the efficiency of digging, landfilling, and leveling.



ENERGY-SAVING DESIGN

With the exhaust emission in line with EPA interim Tier 3 emission standards, the engine is environmental-friendly.
High reliability
With advanced travel motor and optimized flow distribution system, the machine can work more efficiently by traveling at high or low speed as per different ground surface condition and working areas.
Auto deceleration system
With the auto deceleration system, the fuel consumption is reduced by 5-10 percent. The engine speed is lowered automatically to zero after only 3 seconds when the machine operation is stopped, and resumed to the set rpm within only 0.1 second after the operation is started.
Reinforced boom, bucket and high-strength track frame
Besides the thicker side plates, the ear plates have also been redesigned to reduce the stress at the bending. The durability of the bucket is also greatly extended by using quality anti-wear plates with a thickness up by 33 percent.



USER FRIENDLY DESIGN
Spacious cab
Larger windows of the newly-designed spacious cab provide you with a wider view, and the movable roof hatch gives the cab better ventilation and more lights. The control levers and joysticks designed and arranged according to human engineering are all within the reach of the operators, making the operation more easily and labor-saving. With excellent sealing-ring, the cab is free from outer noise, effectively relieving the fatigue of operators.



RELATED ARTICLES

► SANY SY75C, best choice for 7 tonne small-sized excavators

SANY SY75C, the 7.5 tonne small-sized excavator, has been sold in over 100 countries and regions, with the total sales volume exceeding 20,0000 sets, truly deserving the No.1 credit.

OPTIONAL EQUIPMENT

►Hammer pipe lines

FOPS&ROPS Cabin

Half protection cabin

full protection cabin

Rubber track

Steel rubber track block

Thick undercover

Travel motor: NACHI
