Item Details

Specifications
Benefits
Equipment
Download Brochure
Engine
Engine Model
SANY D03S3
Displacement
3.059L
Rated Power
191/1800kW/rpm
Operating Weight
Std. Operating Weight
7280kg
Hydraulic System
Hydraulic Motors - Travel
Doosan DM09VD-A-28/51-1
Hydraulic Motors - Swing
Jesung 7SM430719
Boom Cylinders - Bore
110mm
Boom Cylinders - Stroke
885mm
Arm Cylinders - Bore
90mm
Arm Cylinders - Stroke
900mm
Bucket Cylinders - Bore
130mm
Bucket Cylinders - Stroke
730mm
Service Capacities
Fuel Tank Capacity
150L
Hydraulic Tank Capacity
120L
Engine Oil
10L
Cooling System
6.5L
Final Drive (each)
2.5L
Undercarriage
Track Shoes Number
39
Carrier Roller - Perside
1
Track Roller - Perside
5
Working Range
Max.Digging Force - Bucket
56kN
Max.Digging Force - Arm
38kN
Max.Digging Height
7060mm
Max.Digging Depth
4020mm
Max.Vertical Digging Depth
3290mm
Max. Excavating Distance
6240mm
Min. Swing Radius
1720mm
Height at Min. Swing Radius
5550mm
Transmission
Travel Speed - Highest
4.4km/h
Travel Speed - Lowest
2.4km/h
Swing Speed
11.5rpm
Gradeability
70%/35°
Std. Operating Weight
33kPa
Dimensions
Transportation Length
6090mm
Transportation Width
2220mm
Transportation Height
2610mm
Upper Body Width
2040mm
Cab Height
405mm
Std.Track Width
450mm
Track Gauge
1750mm
Min.Ground Clearance
380mm
Tail Swing Radius
2195mm
Roller Gauge
2195mm
Track Length
2820mm

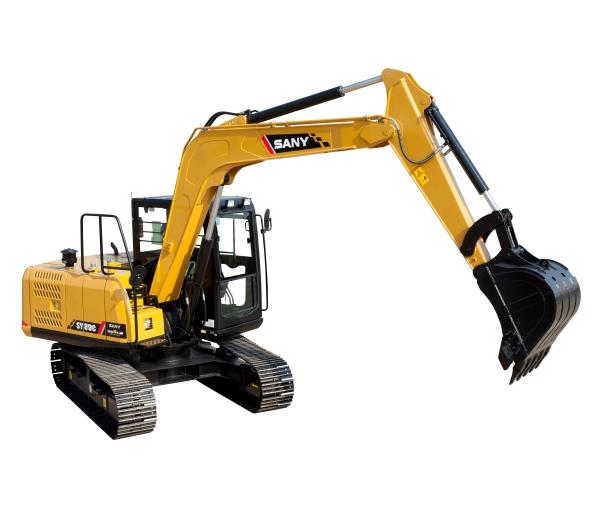

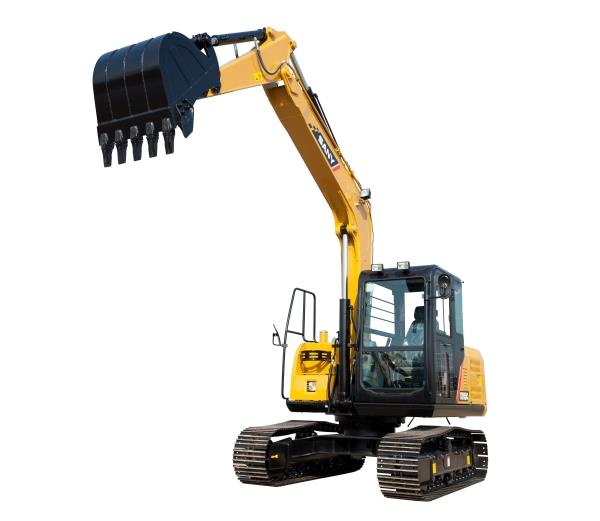

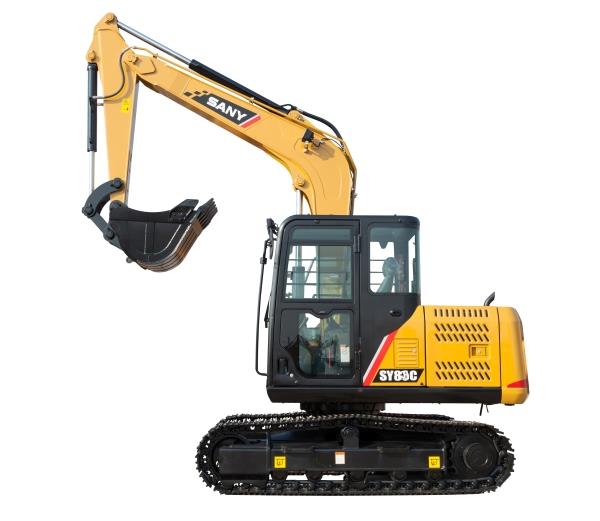

The 7,280 kg SY80C-9S is equipped with SANY D03S3 engine, with rated engine power of 45/2100 kW/rpm.



ADVANCED DYNAMIC CONTROL
The self-developed DOMCS (Dynamic Optimization Matching Control System) intelligent control perfectly matches the engine system and hydraulic driving system, greatly increasing the operating efficiency by 6 percent, while with the fuel consumption reduced by 10 percent.
The matched load sensing hydraulics is designed for increased fuel efficiency and maximized performance. The variable working modes, including heavy-duty mode, standard mode, light-duty mode and break mode, improves the versatility of the machine in different working environment.



REMOTE MONITORING SYSTEM
Configured with advanced GPRS monitoring system and smart machine alerts, allows SANY to monitor all of their equipment around the world. We keep track of engine hours, fuel usage, location history, alerts and events. If there is a problem with a machine, SANY knows about it immediately. With the remote error diagnosis, the problem could be addressed in real time.



HIGH STABILITY AND RELIABILITY
The upgraded undercarriage adopts the box-type structure for the lateral beams, featuring high strength and rigidity, excellent torsion and bending resistant performance.

OPTIONAL EQUIPMENT

►Hammer pipe lines

►FOPS&ROPS cabin

►Half protection cabin

►Full protection cabin

►Thick undercover

►Travel Motor: Doosan
