HIGH EFFICIENCY AND LOW CONSUMPTION

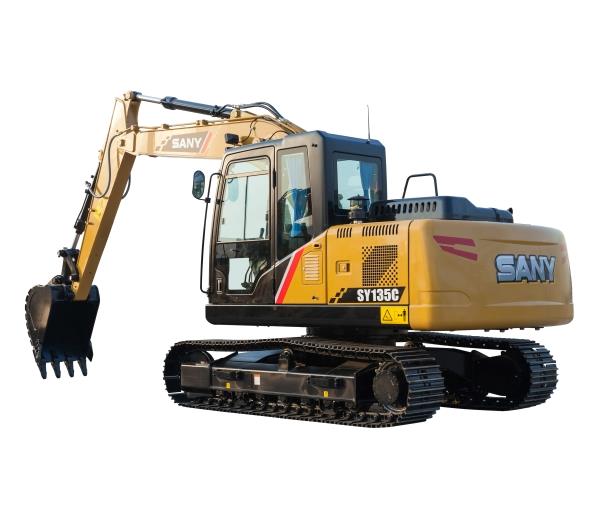

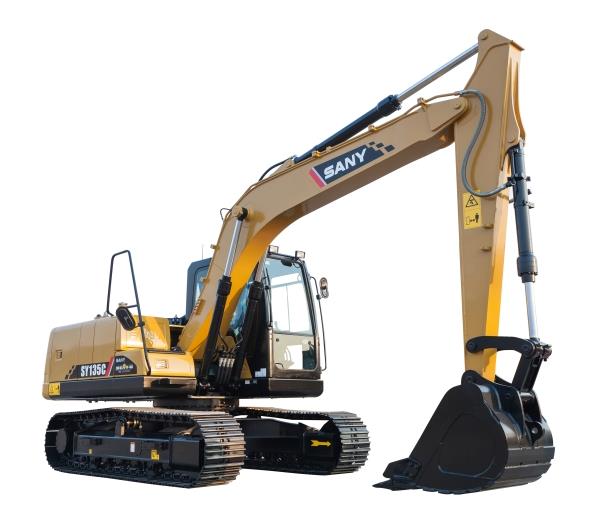

The 13,500 kg SY135C is equipped with Isuzu AJ-4JJ1XYSC engine, with output power of 73/2000kW/rpm, greatly increasing the hydraulic power and fuel efficiency. The customized engine for SY135C is configured with four cylinder, four stroke direct-injection turbocharger, providing strong operating power for the machine.
Faster working speed with larger digging force
The 12 rpm swing speed largely improves the working efficiency, with the digging force of bucket reaching 92.7 kN, and digging force of arm reaching 66 kN.
Electric control module
The electric control module has the capability of making quick response to the operating changes, so as to achieve the optimum engine performance. It’s fully integrated with sensors of fuel, engine oil, air intake, coolant and exhaust system to conduct real-time monitoring and auto-adjustment on the system conditions.
Electric-Hydraulic Control System
Equipped with a dual-pump, dual-circuit constant power control system, the engine fully develops its power to provide a strong operating force, helping get your work done efficiently and effectively.
The ESS Control (ESS Control) and Hydraulic Control (HSS Control), equip the engine with real-time power match, improving the operational productivity and reducing the fuel consumption.
RELIABILITY AND DURABILITY
Quality parts and components
SY135C deploys the customized engine, with 73 kW horse power and 4.329 displacement, largely reducing the heat load and prolonging the service life.
Reinforced X-frame modeled with digital tools make element analysis on loading capacity, realizing high-strength structure.
The high-strength swing platform with reinforced plates, considerably improves the bending resistance performance.
CONFORTABLE OPERATING ENVIRONMENT
The adjustable seat with suspension creates a confortable operating environment, and the rigidity of the seats can also be changed on the operators’ weight.
EASY MAINTENANCE
The SY135C is configured with OEM parts and components, largely extending the service life of the machine. The remote installation of replacement parts eases the maintaining procedures, increasing the using rate, and lowering the service cost.
OPTIONAL EQUIPMENT
►Hammer pipe lines
►Two-way lines (Attachement has two functions)
►Boom &Arm safety valve
►Hydraulic quick coupler lines + button
►FOPS&ROPS cabin
►Half protection cabin
►Full protection cabin
►Fuel fill pump
►Working flash lamp
►Travel acoustic alarm
►SAE/BHL patten change
►Multi-function short joystick
►Power boost
►12V charge
►Steel rubber track block
►Battery main switch
►Thick undercover
►Engine emergency cut off
►Air suspention seat
►Travel Motor: Nabo
►Track: 500mm
