Item Details

Specifications
Benefits
Equipment
Engine
Engine Model
Cummins B3.9-100c
Displacement
3.9L
Rated Power
75/2200kW/rpm
Operating Weight
Std. Operating Weight
13820kg
Hydraulic System
Hydraulic Motors - Travel
Doosan TM22VC-A-48/84-1
Hydraulic Motors - Swing
Kawasaki M2X63CHB-13A-67/255
Boom Cylinders - Bore
105mm
Boom Cylinders - Stroke
990mm
Arm Cylinders - Bore
115mm
Arm Cylinders - Stroke
1175mm
Bucket Cylinders - Bore
100mm
Bucket Cylinders - Stroke
885mm
Service Capacities
Fuel Tank Capacity
240L
Hydraulic Tank Capacity
150L
Engine Oil
9L
Cooling System
6.7L
Final Drive (each)
2.2L
Swing Drive (each)
3L
Undercarriage
Track Shoes Number
44
Carrier Roller - Perside
1
Track Roller - Perside
7
Working Range
Max.Digging Force - Bucket
93.7kN
Max.Digging Force - Arm
68.9kN
Max.Digging Height
8326mm
Max.Digging Depth
5117mm
Max.Vertical Digging Depth
4125mm
Max. Excavating Distance
7952mm
Min. Swing Radius
2410mm
Height at Min. Swing Radius
6498mm
Transmission
Travel Speed - Highest
5.1km/h
Travel Speed - Lowest
2.9km/h
Swing Speed
12rpm
Gradeability
70%/35°
Std. Operating Weight
41.7kPa
Dimensions
Transportation Length
7766mm
Transportation Width
2550mm
Transportation Height
2880mm
Upper Body Width
2490mm
Cab Height
2880mm
Std.Track Width
500mm
Track Gauge
1990mm
Min.Ground Clearance
425mm
Tail Swing Radius
2930mm
Roller Gauge
2930mm
Track Length
3665mm

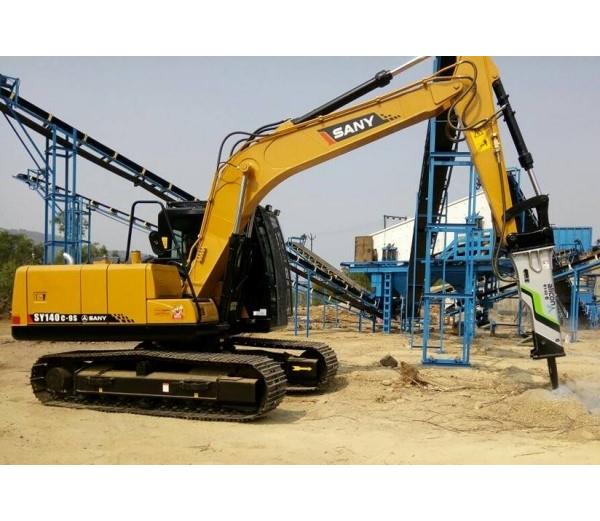

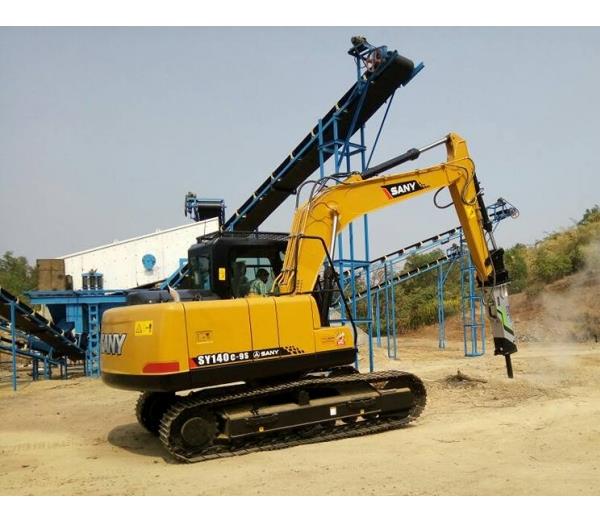

The 13820kg SY140C-9 adopts Cummins B3.9-100c engine, with 75/2200kW/rpm power force, delivering new levels of efficiency and productivity that help you get the job done.



ADVANCED DYNAMIC CONTROL
The self-developed DOMCS (Dynamic Optimization Matching Control System) intelligent control perfectly matches the engine system and hydraulic driving system, greatly increasing the operating efficiency by 6 percent, while with the fuel consumption reduced by 10 percent.
The matched positive flow control is designed for increasing working efficiency and maximizing performance. The variable working modes, including heavy-duty mode, standard mode, light-duty mode and break mode, improves the versatility of the machine in different working environment.



REMOTE MONITORING SYSTEM
Configured with advanced GPRS monitoring system and smart machine alerts, allows SANY to monitor all of their equipment around the world. We keep track of engine hours, fuel usage, location history, alerts and events. If there is a problem with a machine, SANY knows about it immediately. With the remote error diagnosis, the problem could be addressed in real time.



HIGH STABILITY AND RELIABILITY
The upgraded undercarriage adopts the X-shape structure for the lateral beams, featuring high strength and rigidity, excellent torsion and bending resistant performance.

OPTIONAL EQUIPMENT

►Hammer pipe lines

Half protection cabin

Full protection cabin

Travel Motor: Doosan(Std), Nabo(Optional)

Track: 600mm
