Engine
Engine Model
Mitsubishi 6D34-TL
Displacement
5.86L
Rated Power
114/2050kW/rpm
Operating Weight
Std. Operating Weight
21900kg
Hydraulic System
Main pump - Maximum flow
2*220lpm
Hydraulic Motors - Travel
2
Hydraulic Motors - Swing
1
Relief Valve - Implement Circuit
34.3mpa
Relief Valve - Travel Circuit
34.3mpa
Relief Valve - Heavy Lift Circuit
25.5mpa
Relief Valve - Pilot Circuit
3.9mpa
Service Capacities
Fuel Tank Capacity
340L
Hydraulic Tank Capacity
239L
Engine Oil
22L
Cooling System
29L
Final Drive (each)
5.5L
Swing Drive (each)
4L
Undercarriage
Working Range
Max.Digging Force - Bucket
152KN
Max.Digging Force - Arm
137KN
Max.Digging Height
9113mm
Max.Digging Depth
6037mm
Max. Excavating Distance
9312mm
Min. Swing Radius
3730mm
Height at Min. Swing Radius
7680mm
Transmission
Travel Speed - Highest
5.4km/h
Travel Speed - Lowest
3.3km/h
Swing Speed
11rpm
Gradeability
70%/35°
Std. Operating Weight
45kPa
Dimensions
Transportation Length
9650mm
Transportation Width
2980mm
Transportation Height
3440mm
Upper Body Width
2875mm
Cab Height
2990mm
Std.Track Width
600mm
Track Gauge
2380mm
Min.Ground Clearance
440mm
Tail Swing Radius
Track Length
4250mm

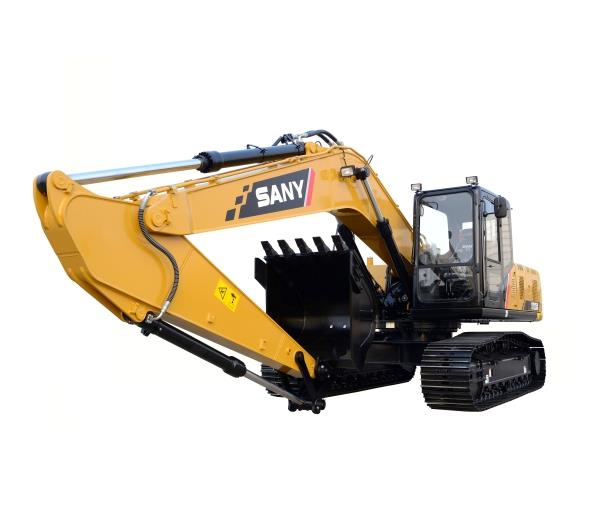

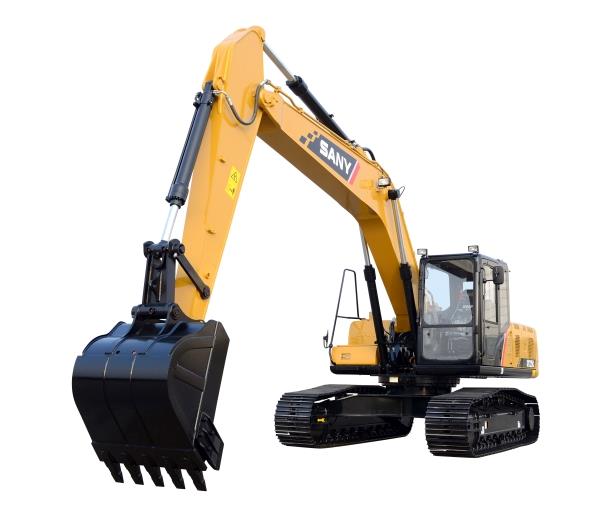

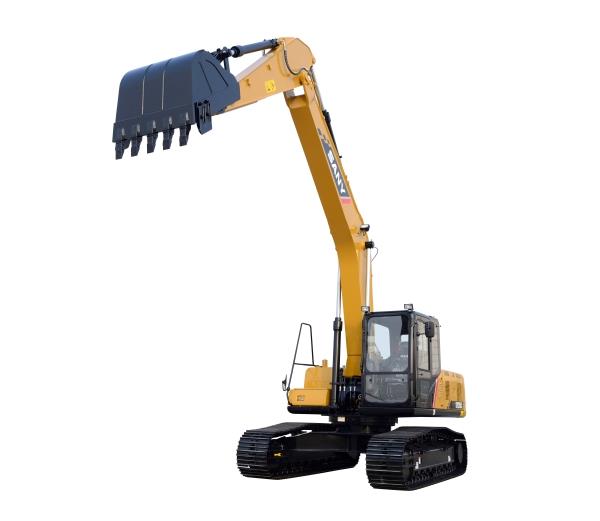

The 21900 kg SY220C adopts Mitsubishi 6D34-TL engine, with 153/2050 kW/rmp power force, ready to deliver top performance, unmatched versatility and the best fuel efficiency.



ADVANCED DYNAMIC CONTROL
The self-developed DOMCS (Dynamic Optimization Matching Control System) intelligent control perfectly matches the engine system and hydraulic driving system, greatly increasing the operating efficiency by 6 percent, while with the fuel consumption reduced by 10 percent.
The matched auto idle speed function is designed for increasing the fuel efficiency and the stability of idling, maximizing the conformability of operation. The variable working modes, including heavy-duty mode, standard mode, light-duty mode and break mode, improves the versatility of the machine in different working environment.



REMOTE MONITORING SYSTEM
Configured with advanced GPRS monitoring system and smart machine alerts, allows SANY to monitor all of their equipment around the world. We keep track of engine hours, fuel usage, location history, alerts and events. If there is a problem with a machine, SANY knows about it immediately. With the remote error diagnosis, the problem could be addressed in real time.



HIGH STABILITY AND RELIABILITY
The upgraded undercarriage adopts the X-shape structure for the lateral beams, featuring high strength and rigidity, excellent torsion and bending resistant performance.

OPTIONAL EQUIPMENT

►Track: 700mm/800mm
