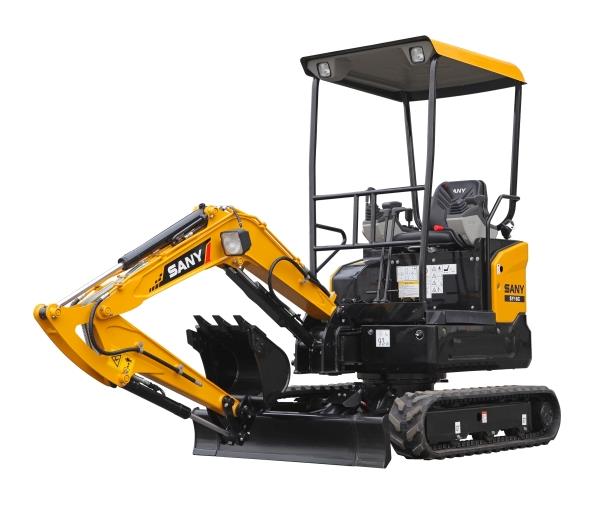

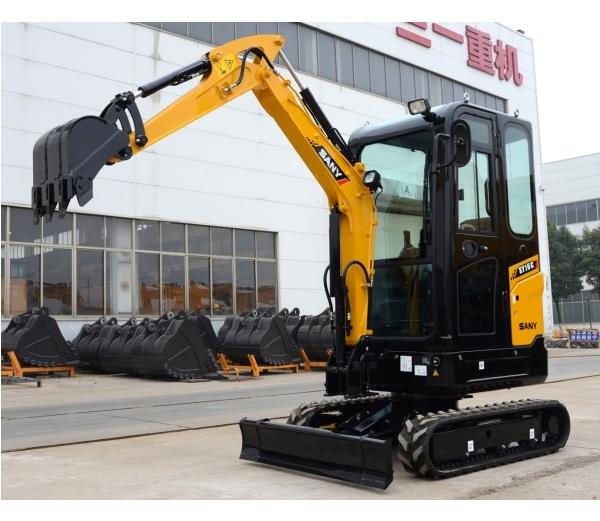

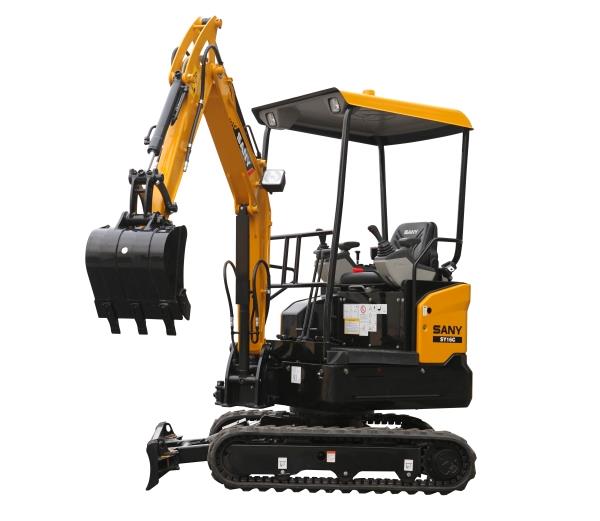

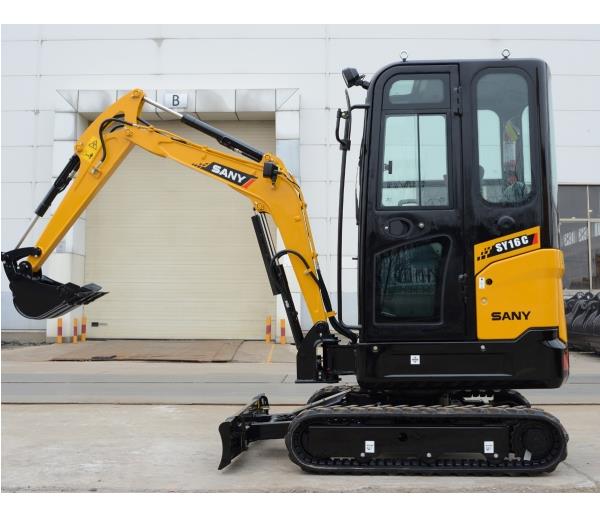

1.75 Tonne Excavators

COMPACT DIMENSIONS
With an upper width of only 980 mm, the SANY SY16C can easily drive through narrow passages and spaces, especially with the 1825 kg weight, making the transportation more easily between different sites. The short tail swing is also ideal for tight job sites and confined spaces.
Extendable Undercarriage and adjustable front blade
The hydraulically extendable undercarriage with adjustable front blade allows the machine to be configured for excellent working stability and optimum performance.

PERFORMANCE AND DURABILITY
Powerful Engine and Hydraulics
Owing to the self-independent SLSS hydraulic system, the 10.3 kW Yanmar engine and perfectly matched hydraulic pump, main valve and travel motor provide efficient and reliable performance, even in the toughest job sites. Low noise and vibration levels deliver comfortable operation.
Auxiliary lines
The auxiliary lines are run down the boom and arm as standard equipment for easy fit-up and
running of hydraulic attachments.
Load sensing hydraulics
The matched load sensing hydraulics is designed for increased fuel efficiency and maximized performance.
ANSYS Platform for prolonging the usage life
Based on the ANSYS platform, the strengthened working devices and undercarriage eases the stress of concentration, making the using life prolong by 30%.

USER FRIENDLY OPERATION
The exchanges of steel track and rubber track make it accessible on the highroad, and suit various working environment.
Rotary arm
The working configuration of the arm ranges from 595 mm of left turn and 350 mm of right turn, making the outer edge of the track could be reached, ideal for the job in compact space like edge or corner of walls.
Convenient maintenance
The tail end of the machine is mainly designed for the daily maintenance, to make it easily accessible to the air filter and fuel oil filter, facilitating the maintaining job.

RELATED ARTICLES

►Test-driving of SY16C: solid in structure, smooth in operating, simple in maintenance

David Cordier has been worked in the engineering industry for many years. When he learned that SANY unveiled a new model of 1.6 ton excavator, SY16C, he decided to have a look and test the working performance by himself.

SY16C OPTIONAL EQUIPMENT

►Hammer pipe lines

►Two-way lines (Attachment has three functions)

►FOPS&ROPS Cabin

►Rubber track

►Thick undercover

►Zero-swing or short tail

►Battery main switch

►Engine emergency cut off

►Travel Motor-NACHI
