Item Details

Specifications
Benefits
Equipment
Engine
Engine Model
Yanmar 3TNV74F
Displacement
0.993L
Rated Power
11.2/2400kw/rpm
Emission Standard
Tier 4F
Max.torque
48.5-51.8/1800N.m/rpm
Operating Weight
Std. Operating Weight
1825kg
Std.Boom Length
1810mm
Std.Arm Length
1130mm
Hydraulic System
Main pump - Maximum flow
45L/min
Hydraulic Motors - Travel
2*axial piston motor with parking brake
Hydraulic Motors - Swing
1*axial piston motor with parking brake
Relief Valve - Implement Circuit
27
Relief Valve - Heavy Lift Circuit
16.2
Relief Valve - Pilot Circuit
3.5
Boom Cylinders - Bore
55mm
Boom Cylinders - Stroke
387mm
Arm Cylinders - Bore
55mm
Arm Cylinders - Stroke
480mm
Bucket Cylinders - Bore
50mm
Bucket Cylinders - Stroke
355mm
Service Capacities
Fuel Tank Capacity
23L
Hydraulic Tank Capacity
21L
Engine Oil
2.0L
Cooling System
3.8L
Final Drive (each)
0.4
Undercarriage
Track Width
230mm
Track Shoes Number
Rubber Crawler
Track Roller - Perside
3
Working Range
Max.Digging Force - Bucket
15.2kN
Max.Digging Force - Arm
9.2kN
Max.Digging Height
3655mm
Max.Digging Depth
2360mm
Max.Vertical Digging Depth
2215mm
Max. Excavating Distance
4000mm
Min. Swing Radius
1655mm
Height at Min. Swing Radius
2745mm
Traveling Force
15.6kN
Transmission
Travel Speed - Highest
3.7km/h
Travel Speed - Lowest
2.1km/h
Swing Speed
10rpm
Gradeability
30°
Std. Operating Weight
29.1kPa
Dimensions
Transportation Length
3575mm
Transportation Width
980/1350mm
Transportation Height
2420mm
Upper Body Width
980mm
Cab Height
270mm
Std.Track Width
230mm
Track Gauge
750/1120mm
Min.Ground Clearance
180mm
Tail Swing Radius

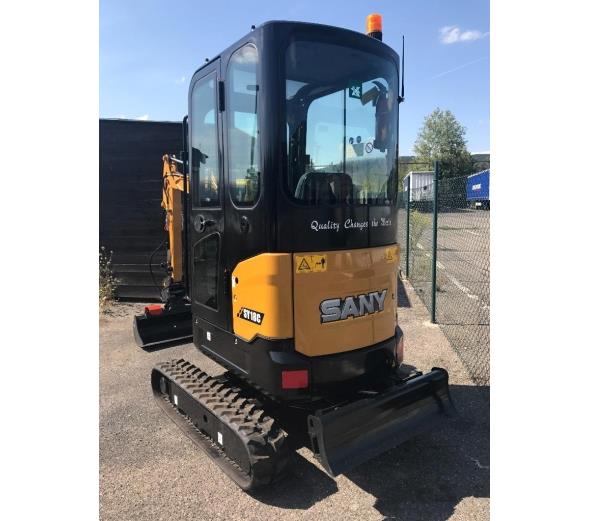

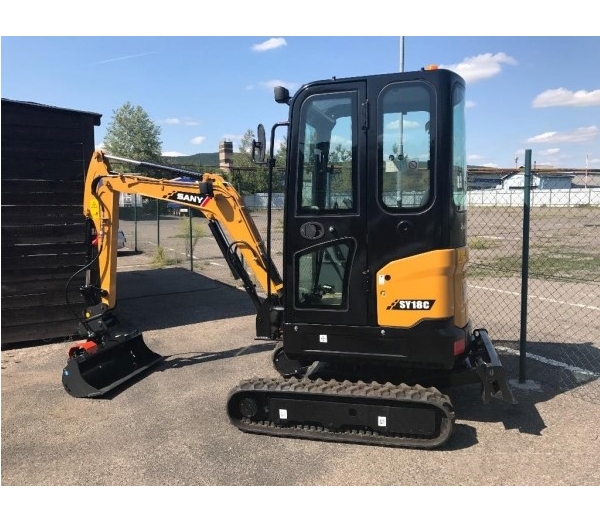

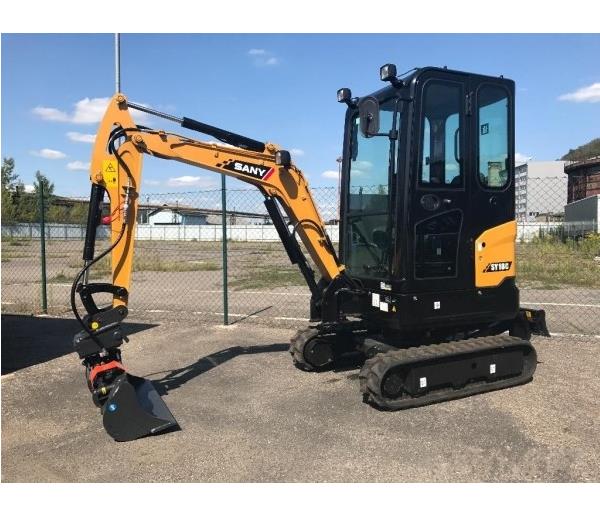

COMPACT DIMENSIONS
With an upper width of only 980 mm, the SANY SY18C can easily drive through narrow passages and spaces, especially with the 1825 kg weight, making the transportation more easily between different sites. The short tail swing is also ideal for tight job sites and confined spaces.
Extendable Undercarriage and adjustable front blade
The hydraulically extendable undercarriage with adjustable front blade allows the machine to be configured for excellent working stability and optimum performance.

PERFORMANCE AND DURABILITY
Powerful Engine and Hydraulics
Owing to the self-independent SLSS hydraulic system, the 11.2 kW Yanmar engine and perfectly matched hydraulic pump, main valve and travel motor provide efficient and reliable performance, even in the toughest job sites. Low noise and vibration levels deliver comfortable operation.
Auxiliary lines
The auxiliary lines are run down the boom and arm as standard equipment for easy fit-up and
running of hydraulic attachments.
Load sensing hydraulics
The matched load sensing hydraulics is designed for increased fuel efficiency and maximized performance.
ANSYS Platform for prolonging the usage life
Based on the ANSYS platform, the strengthened working devices and undercarriage eases the stress of concentration, making the using life prolong by 30%.

USER FRIENDLY OPERATION
The exchanges of steel track and rubber track make it accessible on the highroad, and suit various working environment.
Rotary arm
The working configuration of the arm ranges from 595 mm of left turn and 350 mm of right turn, making the outer edge of the track could be reached, ideal for the job in compact space like edge or corner of walls.
Convenient maintenance
The tail end of the machine is mainly designed for the daily maintenance, to make it easily accessible to the air filter and fuel oil filter, facilitating the maintaining job.
