Item Details

Specifications
Benefits
Equipment
Engine
Engine Model
Yanmar 3TNV88F-ESSY
Displacement
1.6L
Rated Power
18.2/2200 kW/rmp
Operating Weight
Std. Operating Weight
3750 kg
Hydraulic System
Main pump - Maximum flow
88lpm 23gpm
Service Capacities
Fuel Tank Capacity
40L 10.6gal
Hydraulic Tank Capacity
40L 10.6gal
Engine Oil
6.7L 1.8gal
Cooling System
6.5L 1.7gal
Undercarriage
Track Width
300mm 1'0'
Carrier Roller - Perside
1 1
Track Roller - Perside
4 4
Working Range
Max.Digging Force - Arm
18.2kN 4092lbf
Max.Digging Height
4855mm
Max.Digging Depth
3105mm
Max.Vertical Digging Depth
2700mm
Max. Excavating Distance
5465mm
Min. Swing Radius
2475mm
Height at Min. Swing Radius
3685mm
Transmission
Travel Speed - Highest
4.4km/h
Travel Speed - Lowest
2.4km/h
Swing Speed
9rpm
Gradeability
58%
Std. Operating Weight
32kPa
Dimensions
Transportation Length
4915mm
Transportation Width
1720mm
Transportation Height
2515mm
Std.Track Width
300mm
Track Gauge
1420mm
Min.Ground Clearance
295mm
Tail Swing Radius
1670mm
Roller Gauge
1670mm
Track Length
1420mm

PERFORMANCE AND DURABILITY

Powerful engine

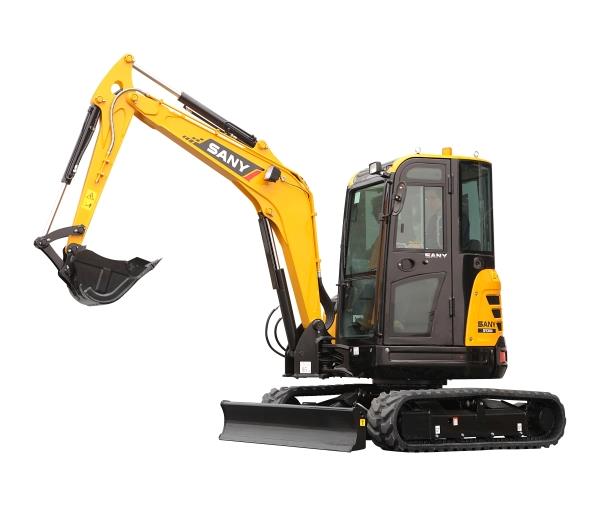

The SY35U mini excavator is equipped with the EPA Tier 3 18.2/2200 kW/rmp Yanmar engine to better support the power and performance required for various applications. Also the stepless speed change accelerator configured for the machine realizes free speed rotation in different working environment, ideal for the combination of operation and efficiency.

Load sensing hydraulics

The matched load sensing hydraulics is designed for increased fuel efficiency and maximized performance.

X-shape undercarriage

The X-shape undercarriage features strong intensity and rigidity, showing excellent bending and torsion resistance capacity, to meet different job sites.

Energy-saving Technology

The self-developed boom and deflection head structure
The topological optimization enhances the strength and reduces the weight, which guarantees the fuel efficiency.



USER FRIENDLY OPERATION
The zero tail swing is perfect for tight job sites and working in confined spaces. The open cab is designed to increase visuality, easy for the operator to observe the road conditions. The Europe-introduced latest noise-reduction technology creates a more focused operation environment; the optional multipoint air-conditioner offers you more choices.

Auxiliary lines
The auxiliary lines are run down the boom and arm as standard equipment for easy fit-up and
running of hydraulic attachments.



EASY MAINTENANCE
The tail end of the machine is mainly designed for the daily maintenance, to make it easily accessible to the air filter and fuel oil filter, facilitating the maintaining job.
