Item Details

Specifications
Benefits
Equipment
UNITS : METRIC US
Engine
Engine Model
Deutz TCD7.8 Deutz TCD7.8
Max Gross Power
262hp
Max Gross Torque
962ft lbs
Displacement
7.8L
Operating
Bucket Capacity
4.0cubic yards
Tipping Load Straight
31,967lbs
Tipping Load @ full turn
28,881lbs
Clearance (full lift 45°dump)
10'2''
Reach (full list 45°dump)
3'10''
Weight
Operating Weight
40,786lbs
Hydraulic System
Pump Model
Implement - Kawasaki Steering - Eaton/Danfoss Implement - Kawasaki Steering - Eaton/Danfoss
Max Flow
81GPM
Max Pressure
3916PSI
Hydraulic Cycle Times
Raise
5.4sec
Dump
1.9sec
Float Down
3.3sec
Total Cycle Time
10.6sec
Servcie Capacities
Fuel Tank
85gal
Cooling System
5.25gal
Engine Crankcase
6gal
Transmission
4.7gal
Front Axle
5gal
Rear Axle
5gal
Hydraulic Tank
31gal
DEF Tank
10.5gal
Transmission
Shift Modes
Automatic, Manual, KD Automatic, Manual, KD
Forward Gear 1
4.4mph
Forward Gear 2
8mph
Forward Gear 3
16mph
Forward Gear 4
25mph
Reverse Gear 1
4.4mph
Reverse Gear 2
8mph
Reverse Gear 3
16mph
Power Train
Front Axle
Fixed Fixed
Traction Aid
Manual differential lock Manual differential lock
Rear Axle
Oscillating Oscillating
Service Brakes
Wet disk Wet disk
Parking Brake
SAHR Disk Brake SAHR Disk Brake
Dimensions
Height to Axle Centerline
440mm 17'32''
Height to Top of Cab
3527mm 138'86''
Center Line or Rear Axle to Edge of Counterweight
2330mm 91'73''
Wheelbase
3200mm 125'98''
Center Line of Rear Axle to Hitch
1600mm 63''
Shipping Length without Attachment
6862mm 270'16''
Shipping Length with Bucket
8142mm 320'55''
Max.Dumping Height
5441mm 214'21''
Hinge Pin Height at Max.Lift
4133mm 162'72''
Dump Clearance at Max.Lift
3118mm 122'76''

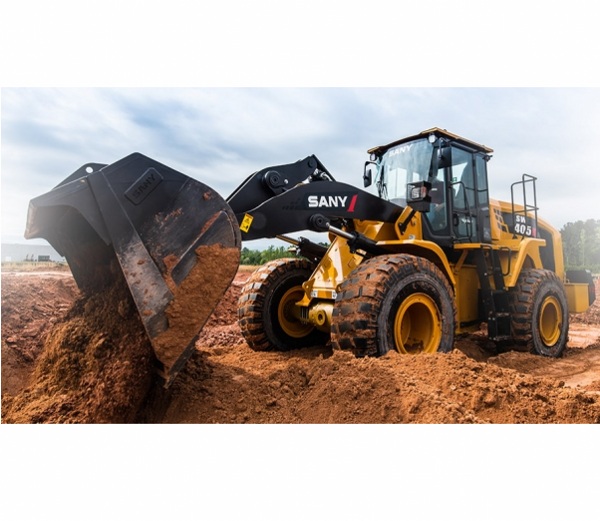

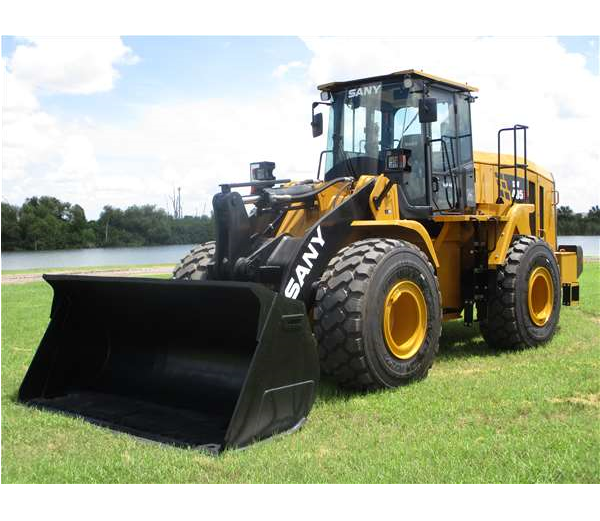

 The Sany SW405K wheel loader has been designed for end users in Europe and North America, meeting the requirements of EU Stage IV and U.S. EPA Tier 4 Final emissions standards. It offers high operating speeds and abundant power with a 195kW(262hp) DEUTZ TCD 7.8 L6 engine.



LATEST TECHNOLOGIES FOR IMPROVING FUEL ECONOMY AND MAXIMIZING PERFORMANCE
The Spicer TZL18 transmission deployed on the SANY SW405K wheel loader is equipped with new-generation electronic controls to deliver continuous system monitoring, automatic shifting, advanced inching capability, and other advanced features.
SW405K uses Spicer 37R axles have been re-engineered and upgraded to offer the same performance as previous versions while reducing axle weight by up to 25%.

Configured with advanced GPRS monitoring system and smart machine alerts, allows SANY to monitor all of their equipment around the world. We keep track of engine hours, fuel usage, location history, alerts and events. If there is a problem with a machine, SANY knows about it immediately. With the remote error diagnosis, the problem could be addressed in real time.
